German engineering since 1967
Aluminium systems, engineered in Germany.
Windows, doors, sliding systems and façades, engineered in-house for every building requirement and tested to the highest ASTM and EN standards.
- Since 1967
- Multiple systems
- Mega projects
- 7 countries
- Tested to ASTM · EN
- Multi-chamber aluminium profile
- Composite thermal profile
- EPDM gasket sealing
- Glazing up to 54 mm
60mm
System depth
54mm
Glazing, overlap sash
2880Pa
Wind, safety · ASTM E330
600Pa
Water · ASTM E331
01 · Company
A German system house since 1967.
SYKON was founded in 1967 by Manfred Mühle and has been based in Kirchlengern, Germany, since the 1970s. Our in-house engineers develop a concept for every building requirement, so windows, doors, sliding systems and façades work together on the same building.
About SYKON1967
Founded
7
Countries
ASTM · EN
Tested to
10years
System guarantee
02 · Project references
Proven on site.
Selected references from the Gulf and Germany.
Coral Reef Tower (G+54)Dubai Maritime City, Dubai, UAEClient: DAMAC
Green RiyadhRiyadh, Saudi ArabiaClient: The Royal Commission for Riyadh City (RCRC)
Zayed City SchoolAbu Dhabi, UAEEducationClient: Abu Dhabi Department of Education
Topaz II Residential BuildingDubai Silicon Oasis, Dubai, UAEResidentialClient: GGICO
Tranquil Wellness Residences TowerJumeirah Village Triangle, Dubai, UAEResidentialClient: Wellcube
Lagoon Views (38 Buildings)Al Hebiah 5th, DAMAC Lagoons, Dubai, UAEClient: DAMAC
03 · Systems
Systems engineered in-house.
Key figures from the 2026 catalogues, every test result with its standard. Where a catalogue gives no figure, the table says "Not stated".
| System | Profile | Glazing, maximum | Wind, safety ASTM E330 | Water ASTM E331 | Key figure |
|---|---|---|---|---|---|
| Windows and doors | |||||

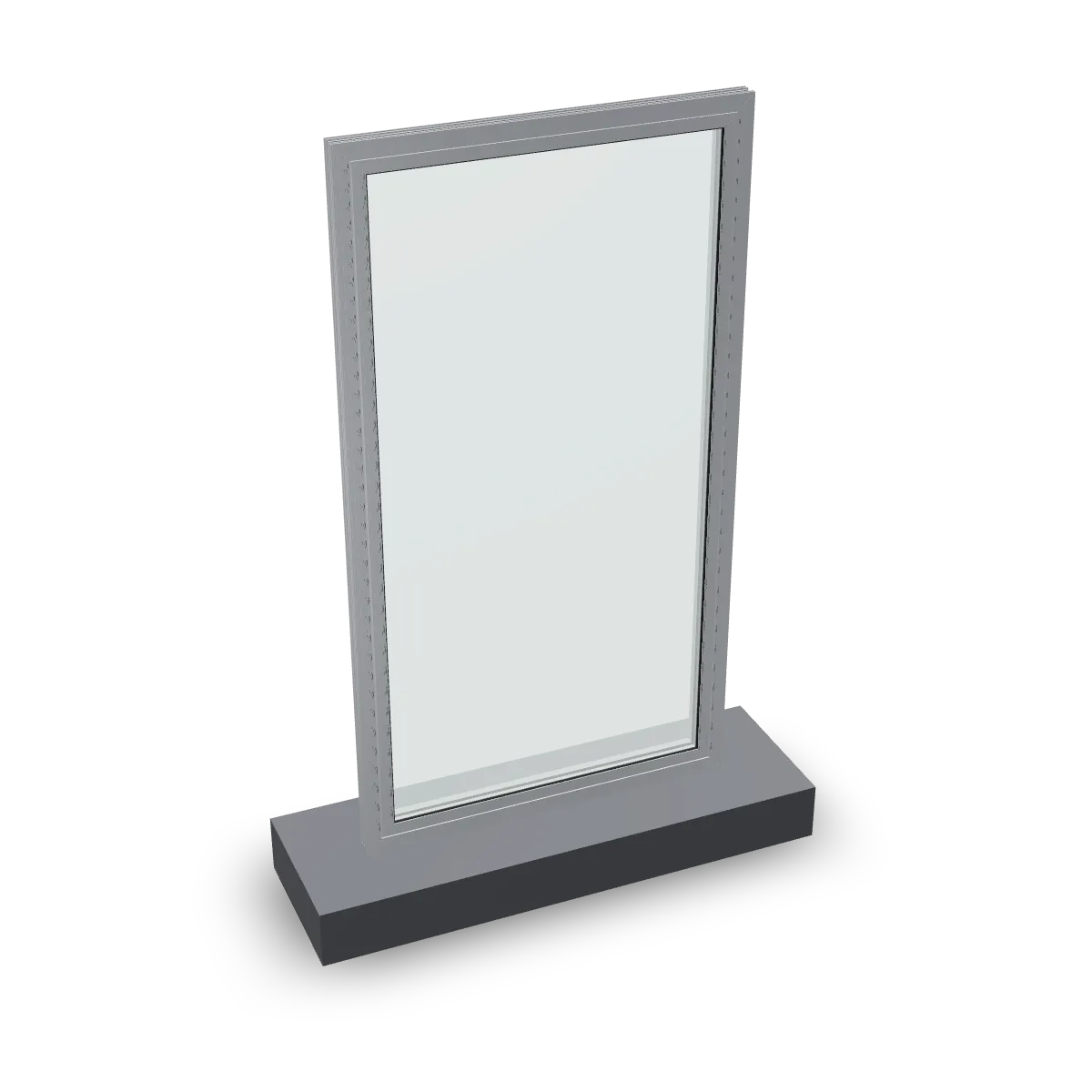

| S60Casement and door system | Thermally insulated | 54 mm | 2880 Pa | 600 Pa | 60 mmSystem depth |

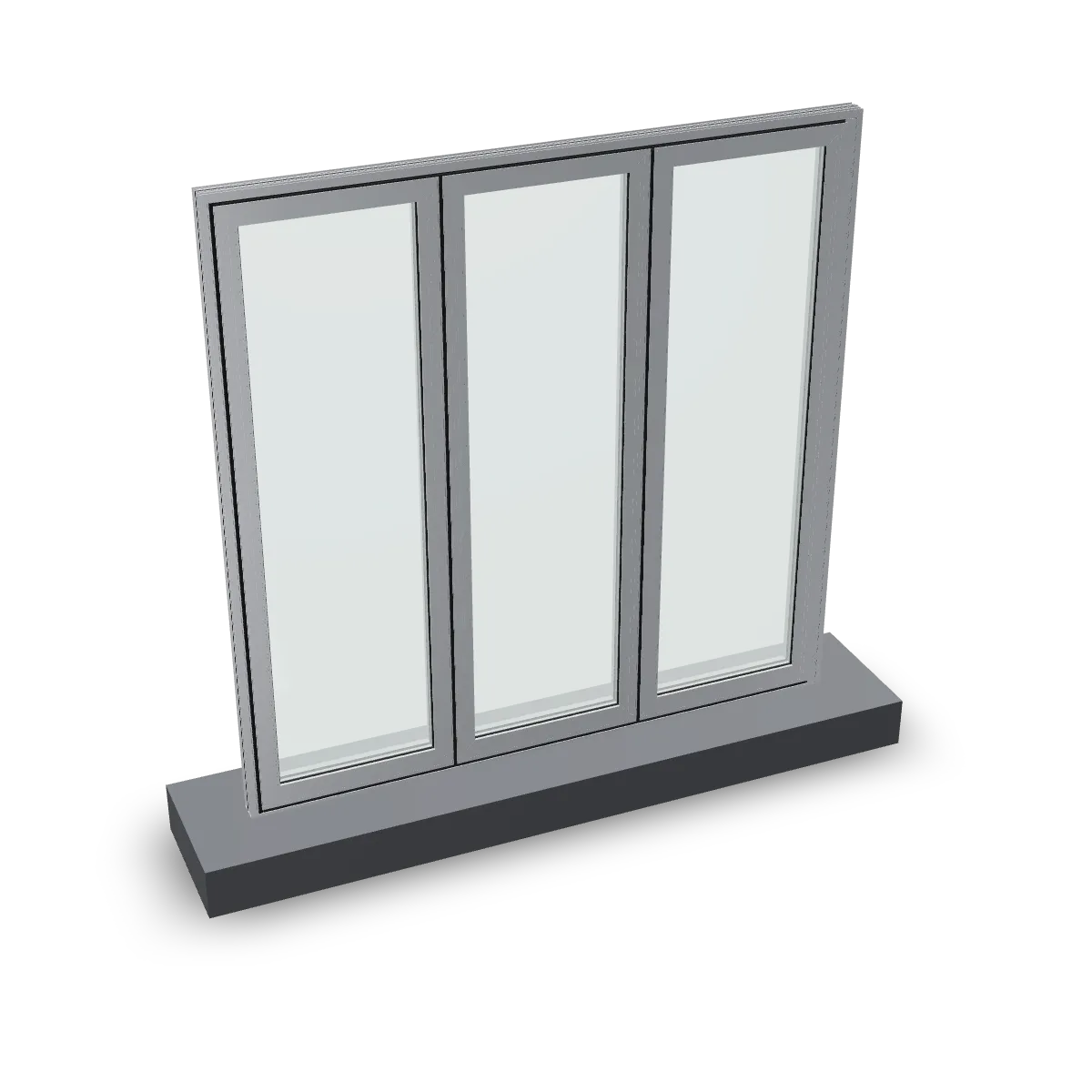

| S77Bi-folding door system | Thermal break | 54 mm | Not stated | Not stated | 77 mmSystem depth |
| Sliding | |||||

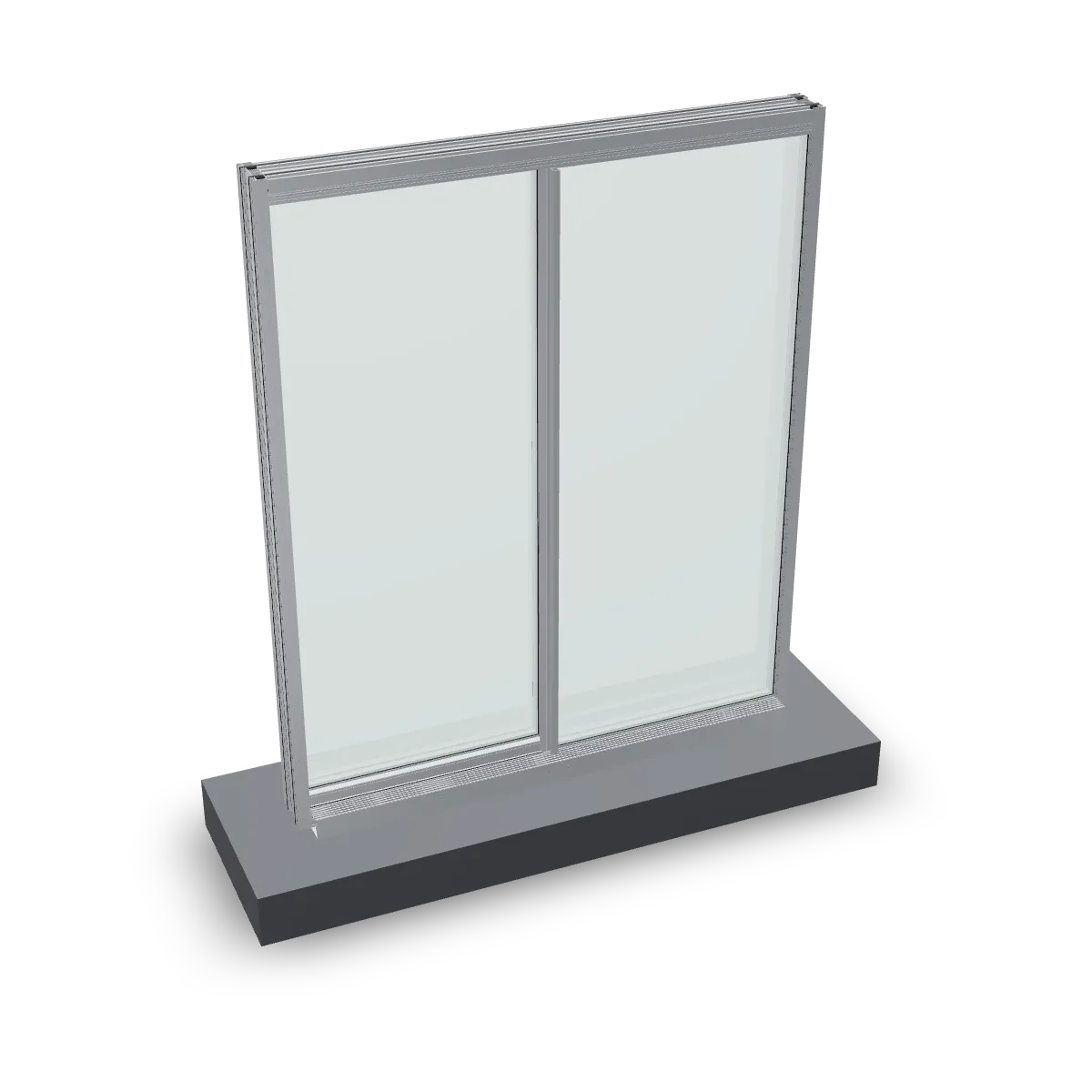

| SL20Minimal panoramic sliding | Thermal break | 45 mm | 1832 Pa | Not stated | 20 mmInterlock sight line |
| SL30Sliding system | Sliding | Not stated | Not stated | Not stated | Catalogue to come. |

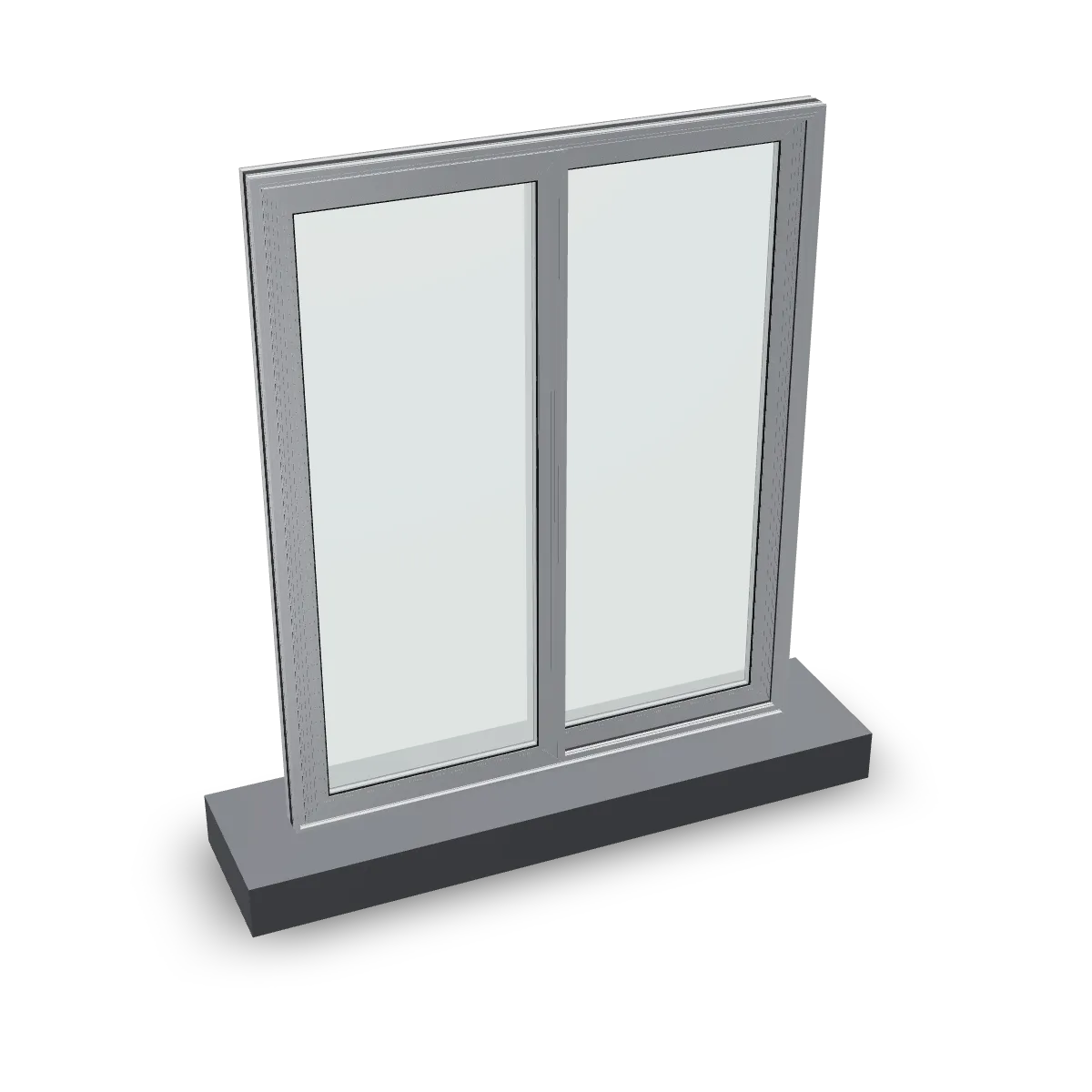

| SL450Sliding, lift and slide | Thermal break | Not stated | 2880 Pa | ~400 Pa | 400 kgPanel weight, lift and slide |
| SL450SSliding, slim interlock | Thermal break | 28 mm | 2880 Pa | 600 Pa | 104 mmFrame width, minimum |

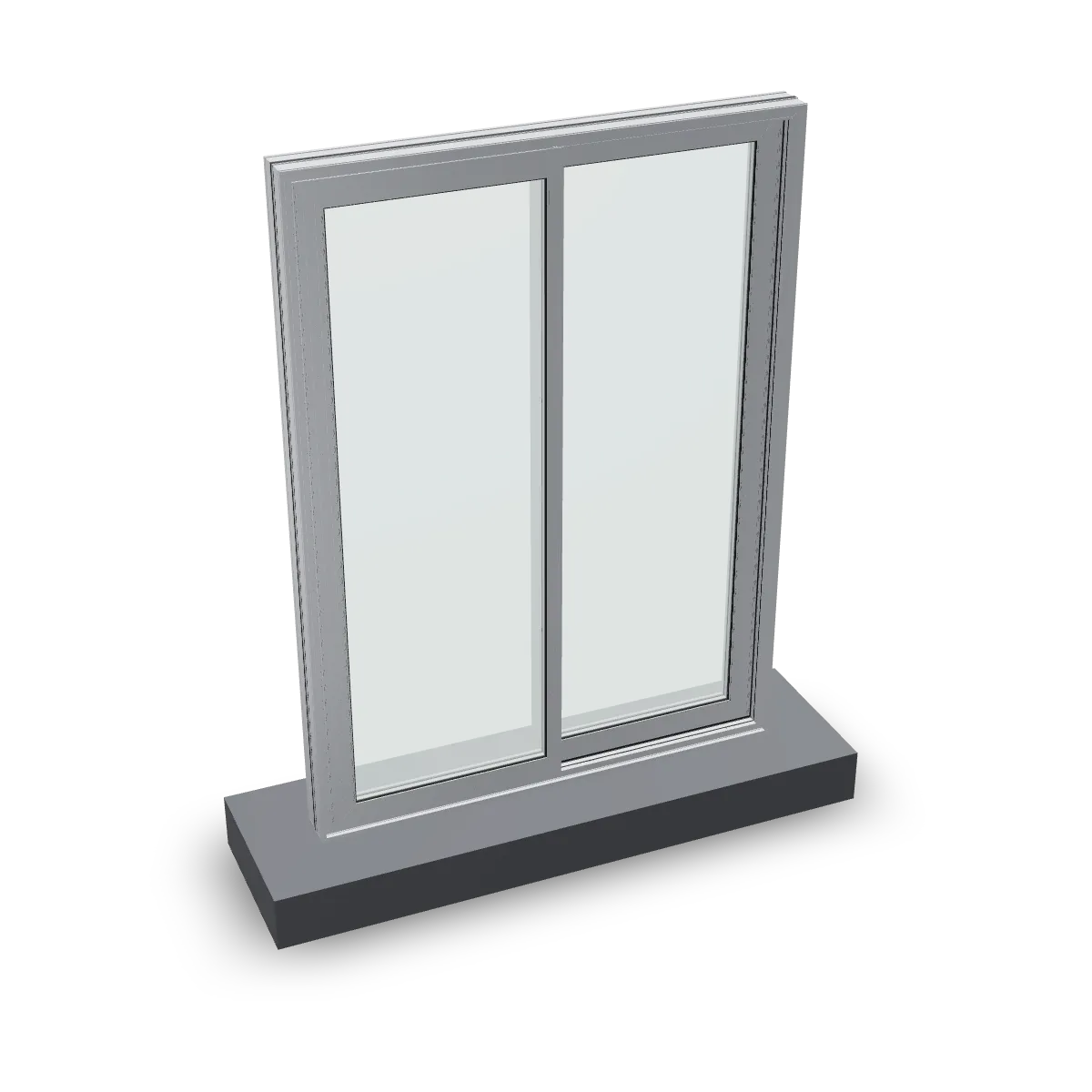

| SL580Thermally broken sliding, lift and slide | Thermal break | 43 mm | 2880 Pa | 1200 Pa | 1000 PaDynamic water · AAMA 501.1 |
| Curtain walls | |||||

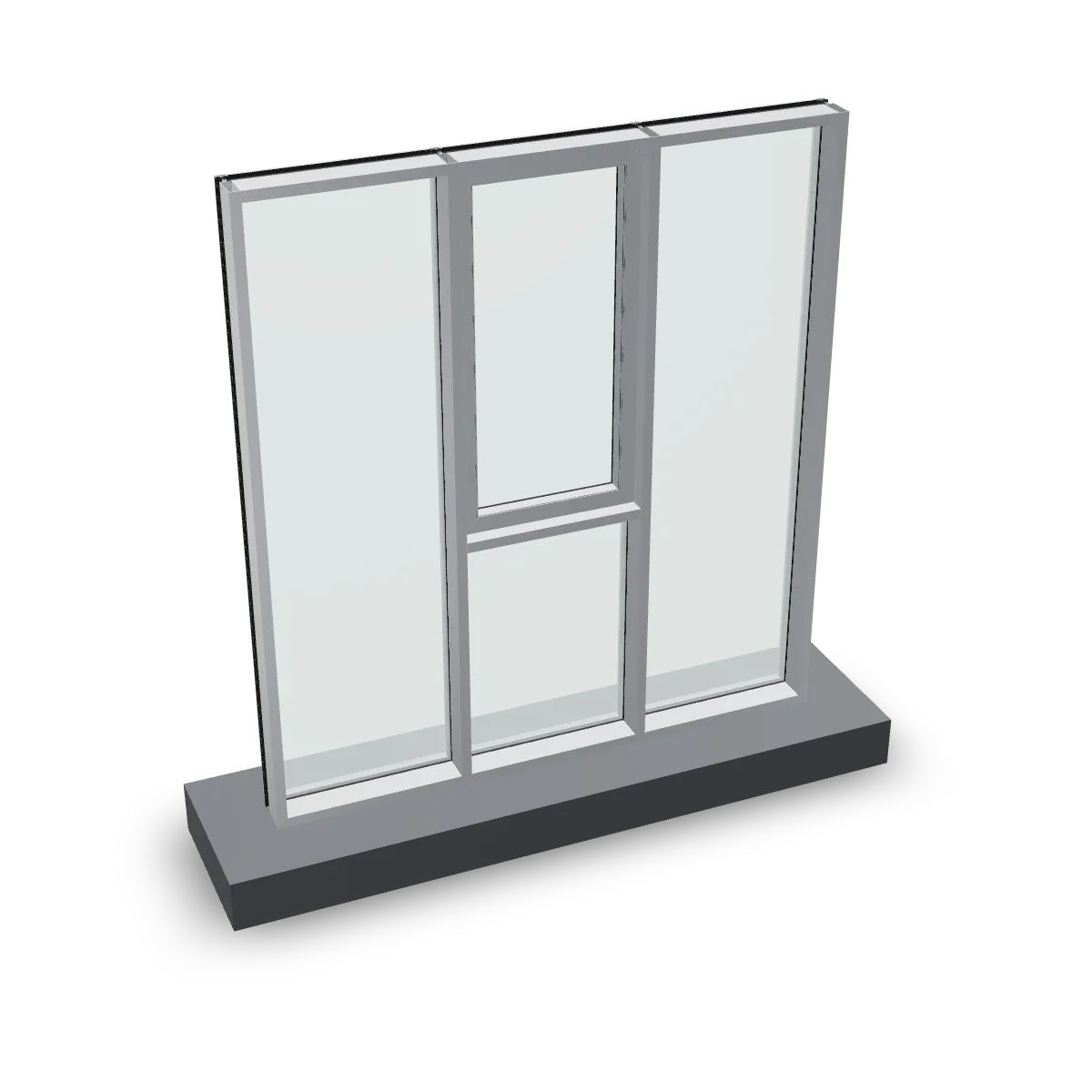

| SY35Slim stick curtain wall | Thermal break options | 50 mm | 3000 Pa | 1200 Pa | 35 mmSight line |

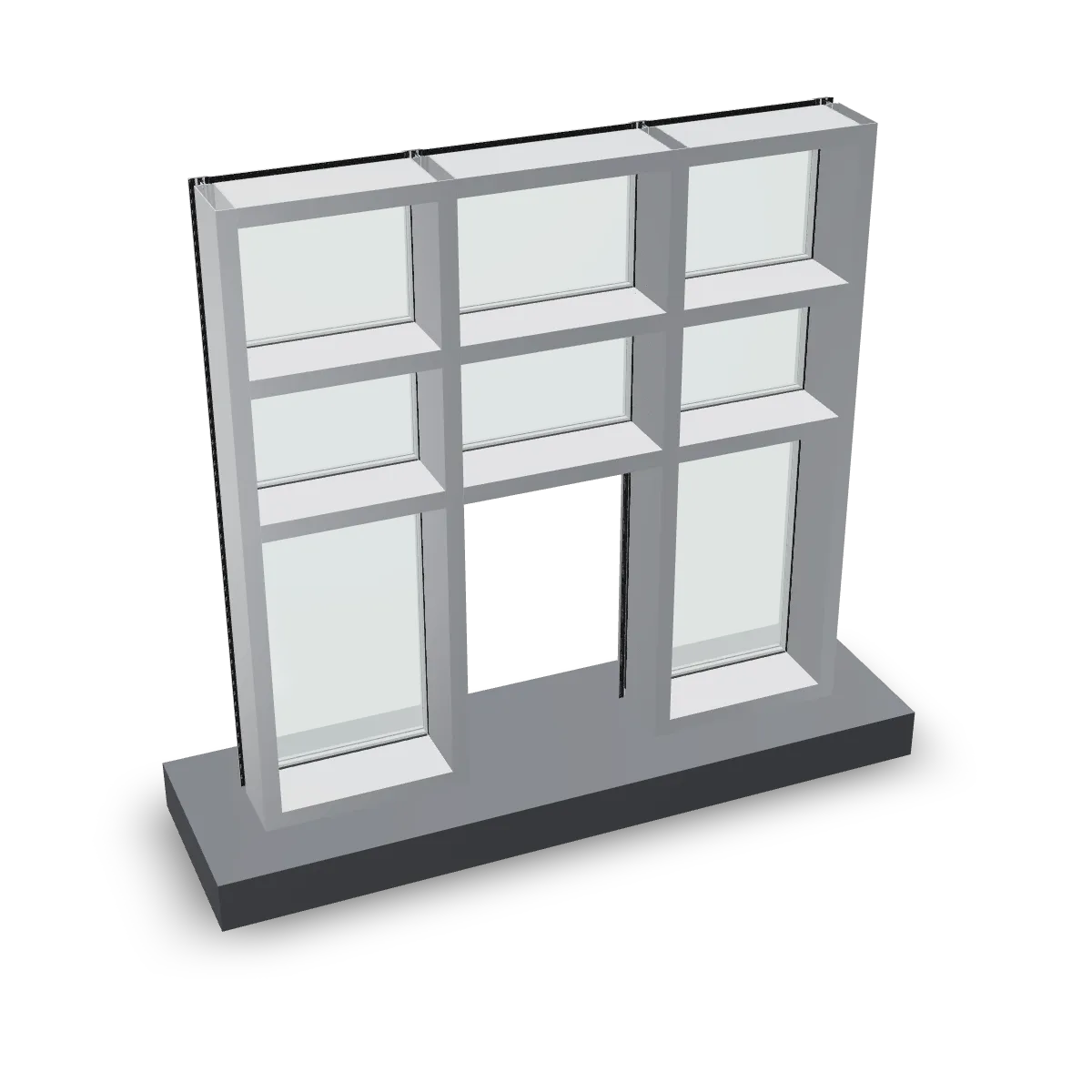

| SY50Curtain wall, captured and SSG | Stick system | 50 mm | 4000 Pa | 1200 Pa | 50 mmSight line |
Performance
with profile.
German engineering. Aluminium systems. Since 1967.
04 · Services
Engineering support at every stage.
Our in-house engineers work with architects, consultants, fabricators and contractors, from the first bid to the finished opening.
Bid
Helping you win the job
- Design engineering
- Application engineering
- Bid consulting
- Energy consulting
- Thermal calculations
Delivery
Supporting you through delivery
- Project engineering and calculation
- Construction solutions
- Technical support
- Installation and fabrication support
- Training
Workshop
Proving the design first
- Prototyping facility
- In-house mock-up production
- Assembly of custom solutions
- On-the-job training
